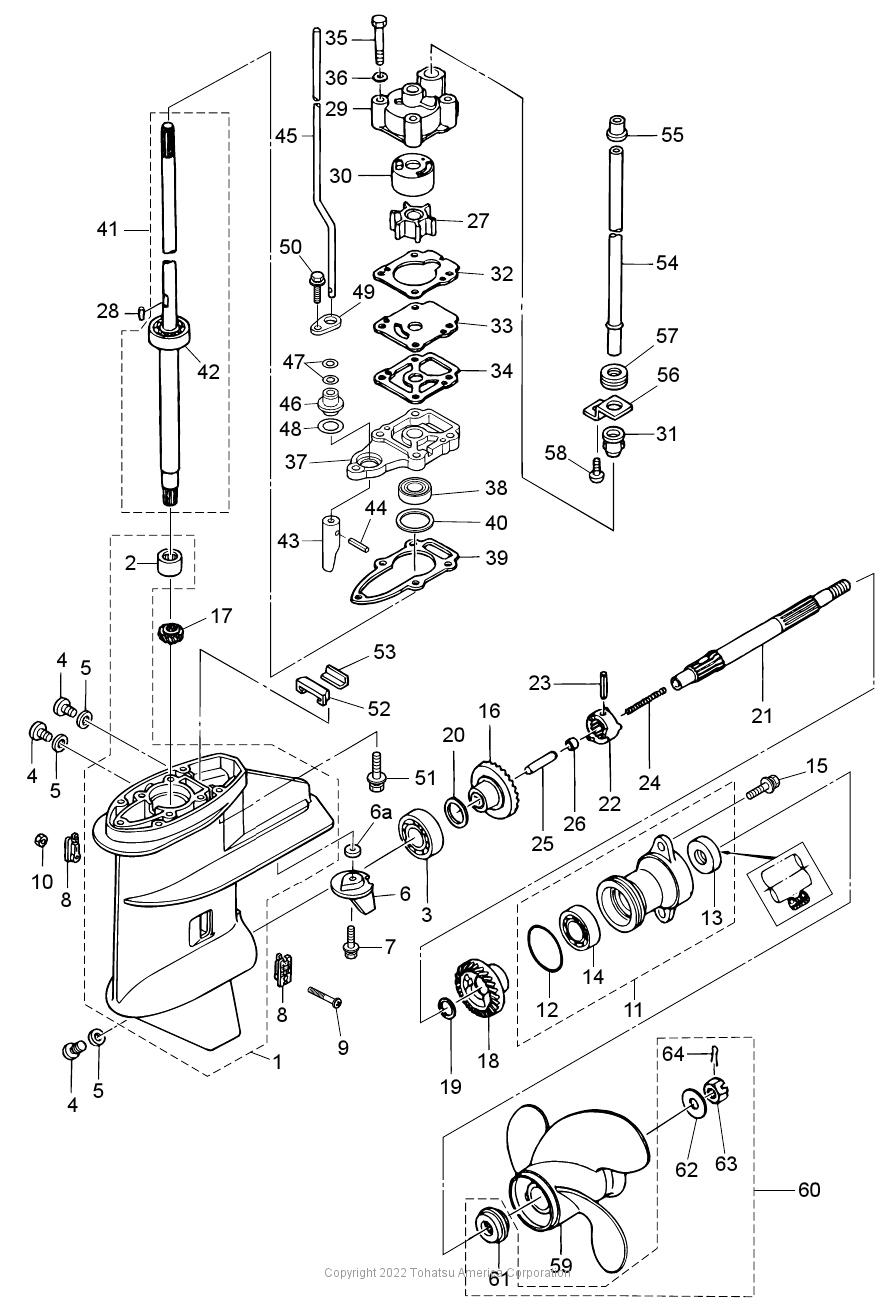

GEAR CASE

Figure 10
for Model # MFS8B
(Click Item # for details)

Price Display

(1) GEAR CASE ASSY(2) ROLLER BEARING 15-21-16(3) BALL BEARING 6204(4) PLUG 8-8(4) PLUG 8-8(4) PLUG 8-8(5) GASKET(5) GASKET(5) GASKET(6) TRIM TAB(6A) ANODE(7) BOLT(8) WATER STRAINER W=17(8) WATER STRAINER W=17(9) SCREW(10) NYLON NUT 4-P0.7(11) PROPELLER SHAFT HOUSING ASSY(12) O-RING 3.2-47(13) OIL SEAL 15-28-10(14) BALL BEARING 6004(15) BOLT(16) BEVEL GEAR ASSY (A)(17) BEVEL GEAR B(18) BEVEL GEAR C(19) WASHER 15.2-19-1.9(20) SHIM 21-28-0.1(20) SHIM 21-28-0.15(21) PROPELLER SHAFT(22) CLUTCH(23) PIN 3.5-28(24) SPRING(25) PUSH ROD(26) SPRING RETAINER(27) WATER PUMP IMPELLER(28) KEY ø3-11(29) PUMP CASE (UPPER)(30) PUMP CASE LINER(31) WATER PIPE SEAL (LOWER)(32) PUMP CASE GASKET(33) WATER PUMP GUIDE PLATE(34) GUIDE PLATE GASKET(35) BOLT(36) WASHER(37) PUMP CASE (LOWER)(38) OIL SEAL 12-24-8(39) PUMP CASE GASKET (LOWER)(40) SHIM 28-36.8-0.1(40) SHIM 28-36.8-0.15(40) SHIM 28-36.8-0.3(41) DRIVE SHAFT ASSY (S)(41) DRIVE SHAFT ASSY (L)(42) BALL BEARING 6301(43) CLUTCH CAM(44) SPRING PIN 3-10(45) CAM ROD (S)(45) CAM ROD (L)(46) CAM ROD BUSHING(47) O-RING 2.5-4.9(48) O-RING 2.4-15.4(49) STOPPER(50) BOLT(51) BOLT 6-35(52) WATER SEAL RUBBER(53) WATER SEAL PLATE(54) WATER PIPE (S)(54) WATER PIPE (L)(55) WATER PIPE SEAL (UPPER)(56) LOCK PLATE(57) WATER PIPE AUXILIARY MOUNT 13-2.5(58) SCREW(59) PROPELLER ASSY (6.5")(59) PROPELLER ASSY (7")(59) PROPELLER ASSY (7.5")(59) PROPELLER ASSY (9.5")(60) PROPELLER HARDWARE KIT(61) THRUST HOLDER 4D(62) WASHER 10.5-28-2(63) PROPELLER NUT(64) SPLIT PIN 3-18
