ASSEMBLY & KIT PARTS

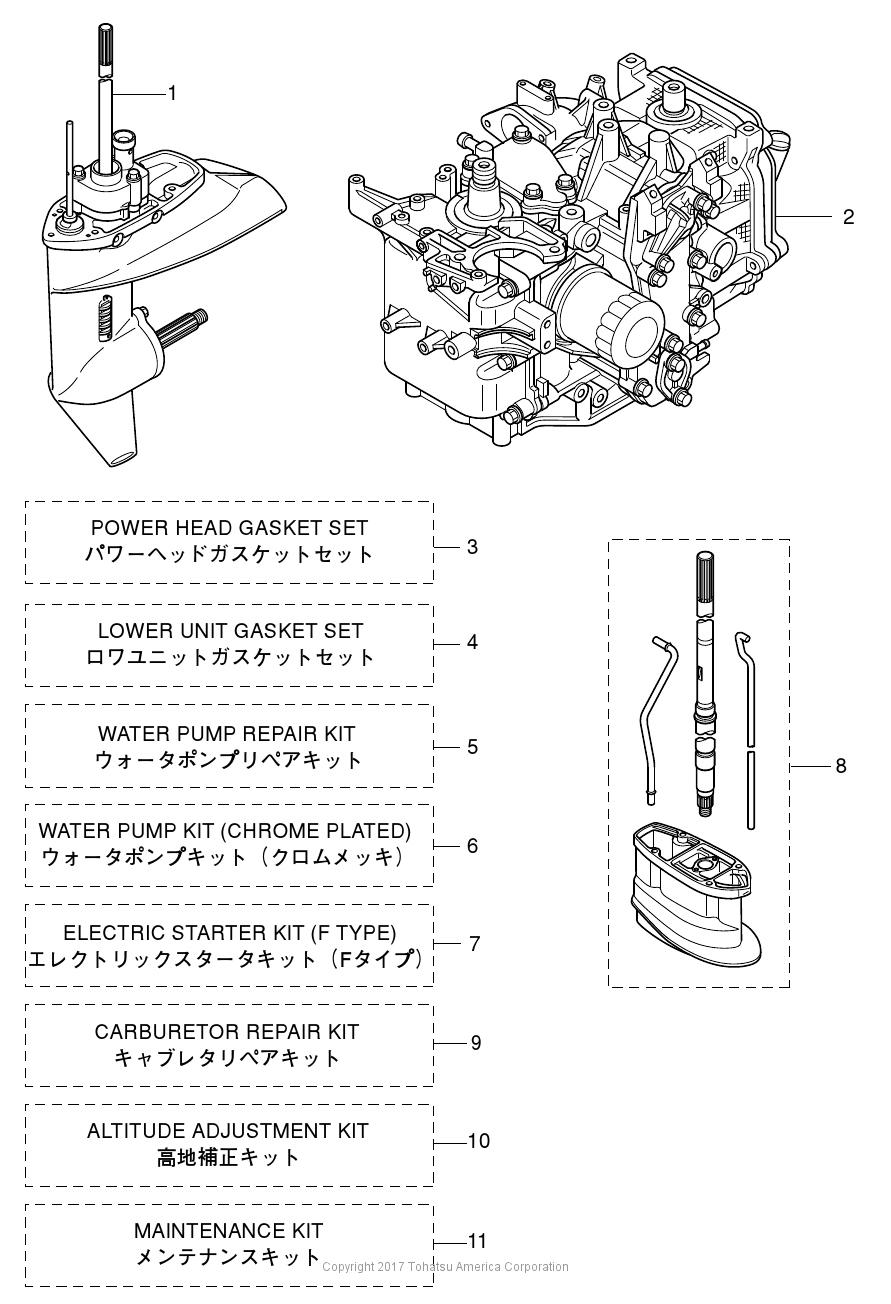

Figure 23
for Model # MFS15D
(Click Item # for details)

Price Display

(1) LOWER UNIT ASSY (S)(1) LOWER UNIT ASSY (L)(2) ENGINE SHORT BLOCK KIT(3) POWER HEAD GASKET SET(3) CYLINDER HEAD GASKET(3) CYLINDER HEAD COVER GASKET(3) O-RING 3.1-24.4(3) EXHAUST COVER GASKET(3) THERMOSTAT CAP GASKET(3) GASKET(3) GASKET(3) OILPAN GASKET(3) OIL SEAL 32-44-9(3) OIL SEAL 36-50-7(3) INTAKE MANIFOLD GASKET(3) CARBURETOR GASKET(3) SEAL RING 2.4-35(3) O-RING 3.5-25.7(3) O-RING 1.5-15.5(3) O-RING(3) O-RING 1.5-10.7(3) O-RING 1.5-8.5(3) OIL SEAL 18-35-8(4) LOWER UNIT GASKET SET(4) GUIDE PLATE GASKET(4) GASKET 8.1-15-1(4) O-RING 2.4-59.6(4) OIL SEAL 17-30-9(4) OIL SEAL 13.8-26-9.5(4) O-RING 3.5-36(4) O-RING 2.4-5.8(5) WATER PUMP REPAIR KIT(5) GUIDE PLATE GASKET(5) WATER PUMP IMPELLER(5) KEY ø2-16(5) PUMP CASE LINER(5) WATER PUMP GUIDE PLATE(5) BOLT(6) WATER PUMP KIT (CHROME PLATED)(6) GUIDE PLATE GASKET(6) WATER PUMP IMPELLER(6) PUMP CASE LINER(6) WATER PUMP GUIDE PLATE(7) ELECTRIC STARTER KIT (F)(7) STARTER MOTOR ASSY(7) STARTER MOTOR BAND(7) DAMPER(7) BOLT(7) BOLT(7) STARTER SOLENOID(7) CABLE TERMINAL HOLDER(7) COLLAR 6-8-6(7) BOLT(7) BOLT(7) COVER(7) WIRING DIAGRAM DECAL(7) BOLT(7) STARTER SOLENOID BRACKET(7) BOLT(7) RECTIFIER COMPLETE(7) CLAMP 6.5-47.5P(7) BAND MOUNT(7) BAND 203(7) BOLT(7) NEUTRAL SWITCH(7) MAIN SWITCH ASSY(7) BATTERY CABLE L=2750(7) PROTECTOR ø10.7-320(7) TERMINAL CAP 15.5-20-28(7) STARTER CABLE L=270(7) PROTECTOR ø10.7-180(7) TERMINAL CAP 8-18-28(7) TERMINAL CAP 13-13-28(7) FUSE WIRE ASSY L=185(7) FUSE WIRE ASSY L=720(7) FUSE HOLDER BRACKET(7) BAND 135(7) PROTECTOR(8) EXTENSION HOUSING KIT (UL)(8) EXTENSION HOUSING(8) BOLT 8-31(8) DRIVE SHAFT BUSHING(8) STOPPER(8) BOLT(8) LOCK PLATE(8) WATER PIPE AUXILIARY MOUNT 13-2.5(8) SCREW(8) WATER PIPE (UL)(8) DRIVE SHAFT (UL)(8) CAM ROD (UL)(8) SPRING PIN 3-12(8) SPRING PIN(9) CARBURETOR REPAIR KIT(9) O-RING(9) FLOAT VALVE(9) FLOAT ARM PIN(9) FLOAT(9) SCREW(9) FLOAT CHAMBER GASKET(9) SCREW(9) GASKET(9) CARBURETOR COVER GASKET(9) GASKET(9) FILTER(9) O-RING(9) SCREW(10) ALTITUDE ADJUSTMENT KIT(11) MAINTENANCE KIT FOR MFS9.9/15/20D(11) GASKET 8.1-15-1(11) WATER PUMP IMPELLER(11) PUMP CASE LINER(11) KEY ø2-16(11) WATER PUMP GUIDE PLATE(11) ANODE(11) OIL FILTER(11) GUIDE PLATE GASKET(11) GASKET(11) WASHER 14.5-24-1(11) TRIM TAB(11) SPLIT PIN 3-22(11) SPARK PLUG(DCPR6E)
