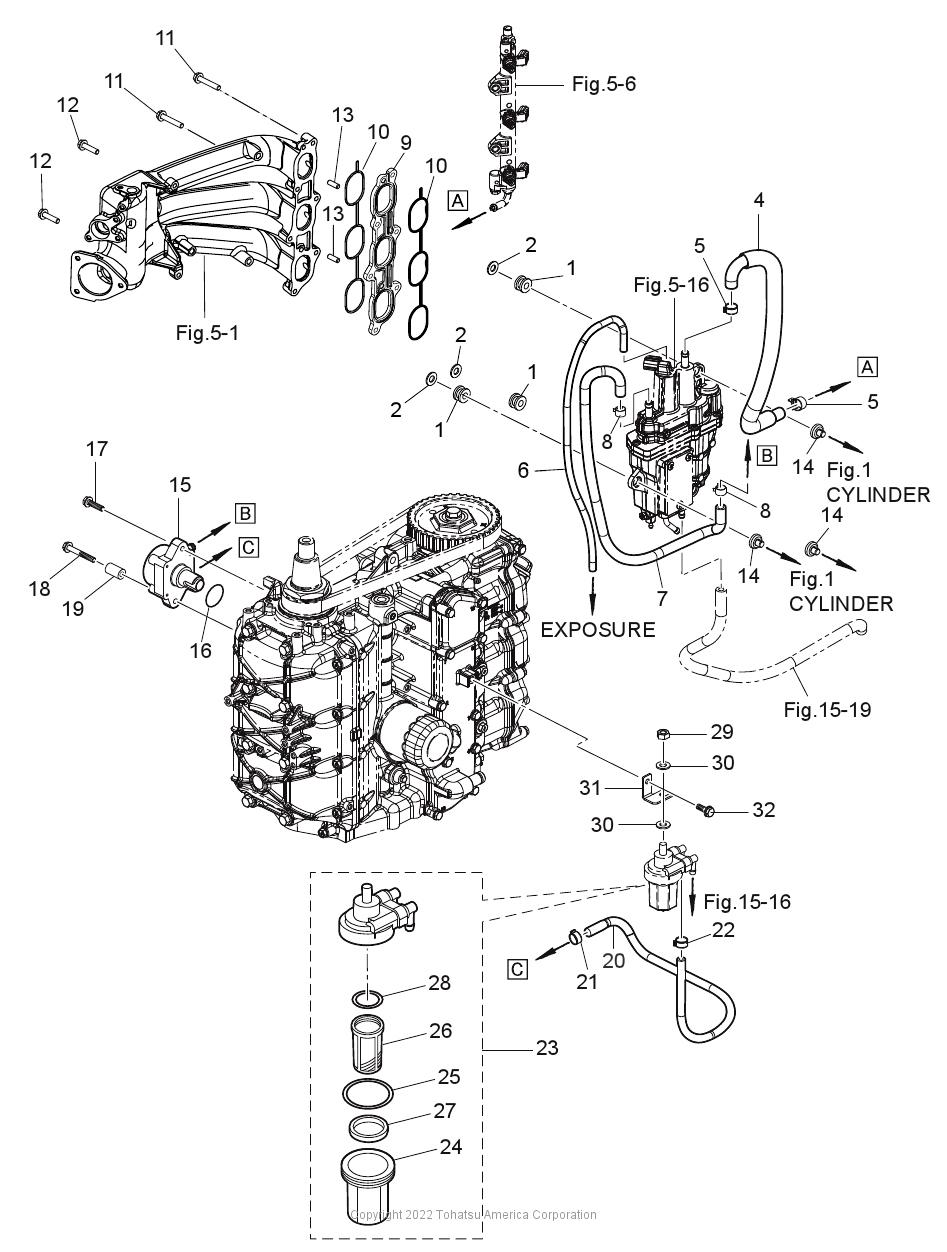

FUEL SYSTEM

Figure 6
for Model # MFS60A
(Click Item # for details)

Price Display

(1) RUBBER MOUNT(1) RUBBER MOUNT(1) RUBBER MOUNT(2) WASHER(2) WASHER(2) WASHER(4) FUEL HOSE W/PROTECTOR(5) CLAMP ø16.8(5) CLAMP ø16.8(6) FUEL HOSE 4-9(7) FUEL HOSE W/PROTECTOR(7) FUEL HOSE W/PROTECTOR(8) CLIP ø11.3(8) CLIP ø11.3(9) INSULATOR(10) O-RING(10) O-RING(11) BOLT(11) BOLT(12) BOLT(12) BOLT(13) DOWEL PIN 6-16(13) DOWEL PIN 6-16(14) BUSHING(14) BUSHING(14) BUSHING(15) FUEL PUMP ASSY(16) O-RING(17) BOLT(18) BOLT(19) SPACER 6.2-13-22(20) LOW PERMEATION HOSE ø11.3-ø7~ø5-ø10,L=445(20) FUEL HOSE 5-10,L=445(21) CLIP ø11.3(22) CLIP ø9.4(23) FUEL FILTER ASSY(24) CUP(25) O-RING(26) FILTER(27) FLOAT(28) O-RING(29) NUT(30) WASHER(30) WASHER(31) PLATE(32) BOLT
