INTAKE MANIFOLD & FUEL SYSTEM

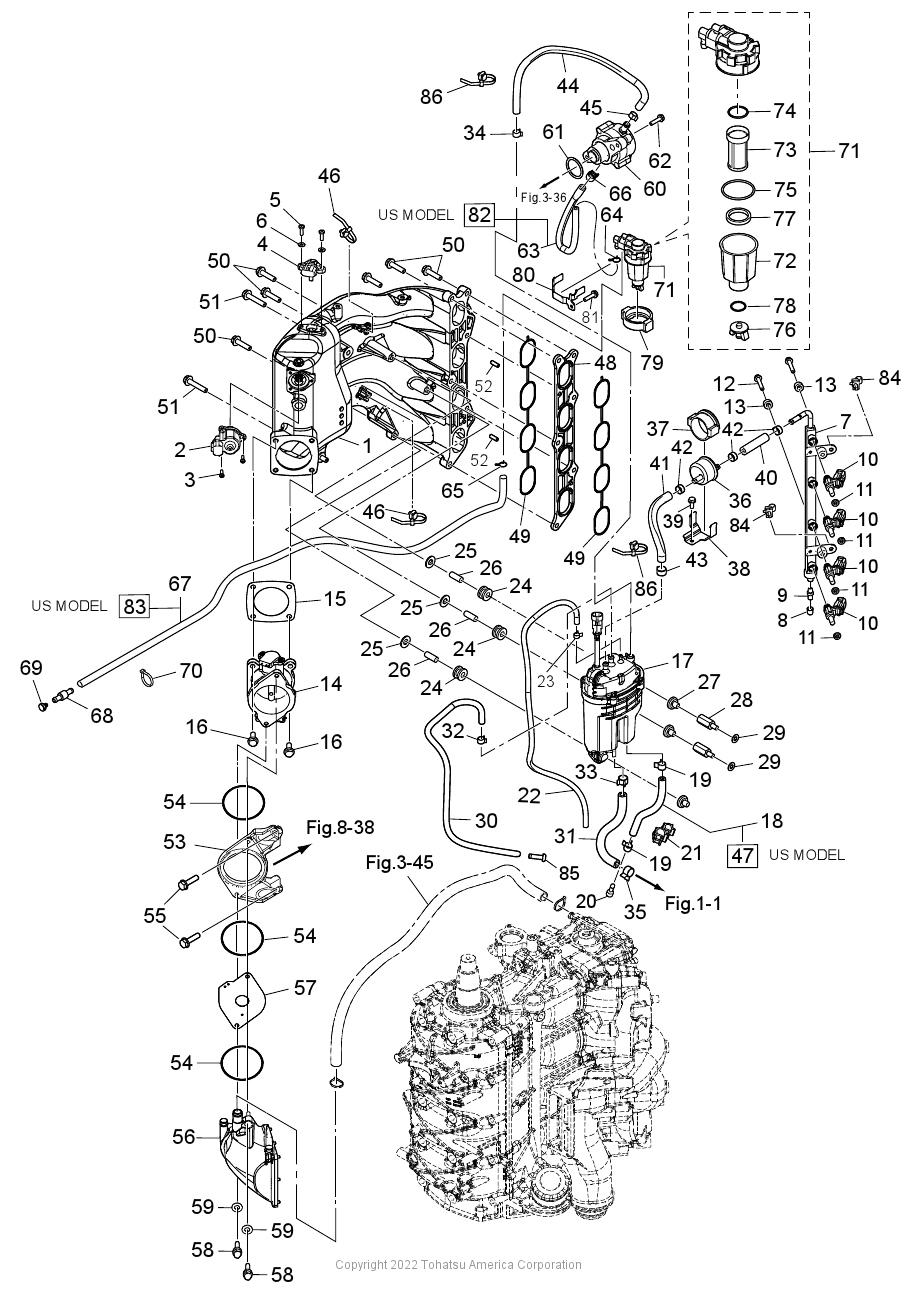

Figure 5
for Model # MFS75A
(Click Item # for details)

Price Display

(1) INTAKE MANIFOLD(2) ISC VALVE(3) SCREW(4) MAP SENSOR(5) SCREW(6) WASHER(7) FUEL RAIL(8) CAP(9) VALVE ASSY (PRESSURE CHECK)(10) FUEL INJECTOR ASSY(10) FUEL INJECTOR ASSY(10) FUEL INJECTOR ASSY(10) FUEL INJECTOR ASSY(11) SEAL RING(11) SEAL RING(11) SEAL RING(11) SEAL RING(12) BOLT(13) COLLAR 6.5-12.5-7.5(13) COLLAR 6.5-12.5-7.5(14) THROTTLE BODY ASSY(15) GASKET(16) BOLT(16) BOLT(17) VAPOR SEPARATOR ASSY(18) HOSE(19) CLIP ø9.4(19) CLIP ø9.4(20) PLUG(21) CLAMP ø10(22) HOSE(23) CLIP ø7.8(24) RUBBER MOUNT(24) RUBBER MOUNT(24) RUBBER MOUNT(25) WASHER(25) WASHER(25) WASHER(26) PIN ø8-22(26) PIN ø8-22(26) PIN ø8-22(27) BUSHING(28) SPACER(29) WASHER(29) WASHER(30) WATER HOSE L=650 5-7(31) WATER HOSE L=160 33-7(32) CLIP ø12.5(33) CLIP ø12.5(34) CLIP ø12.5(35) CLIP ø11.3(36) HIGH PRESSURE FUEL FILTER(37) FUEL FILTER RUBBER MOUNT(38) PLATE(39) BOLT(40) LOW PERMEATION HOSE L=50 6.5-14.5(41) LOW PERMEATION HOSE L=140(42) CLAMP ø16.8(42) CLAMP ø16.8(43) CLAMP 21/32(44) FUEL HOSE W/PROTECTOR(44) FUEL HOSE W/PROTECTOR(45) CLIP ø13.5(46) BAND 104(46) BAND 104(47) LOW PERMEATION HOSE L=220 5-10(48) INSULATOR(49) O-RING ø1.9(49) O-RING ø1.9(50) BOLT(50) BOLT(50) BOLT(51) BOLT(51) BOLT(52) DOWEL PIN 6-16(52) DOWEL PIN 6-16(53) HOLDER(54) O-RING(54) O-RING(54) O-RING(54) O-RING(54) O-RING(54) O-RING(55) BOLT(56) INTAKE SILENCER ASSY(57) RESTRICTOR(58) BOLT 35MM(58) BOLT 35MM(59) WASHER(59) WASHER(60) FUEL PUMP ASSY(61) O-RING 3.5-31.2(62) BOLT(63) FUEL HOSE L=250 5.5-7.5(64) CLIP ø10(65) CLIP ø10(66) CLIP ø13.5(67) FUEL HOSE L=1100 5-7(68) NIPPLE 8-6-8(69) PLUG(70) BAND 104(71) FUEL FILTER ASSY(71) FUEL FILTER ASSY(72) CUP(73) FILTER(74) O-RING(75) O-RING(76) DRAIN VALVE(77) FLOAT(78) SEAL(79) FUEL FILTER HOLDER(80) PLATE(81) BOLT(82) LOW PERMEATION HOSE L=250 5.5-7.5(83) LOW PERMEATION HOSE L=1100 5-7(84) BAND(84) BAND(85) NIPPLE 6-8-11(86) BAND 104(86) BAND 104
